Insights Book

What Is the Insights Book?

The Insights Book is a multi-chapter, self-contained HTML deliverable that answers “is this project OK?” at a glance. It combines every CARI intelligence signal into one interactive document — no server, no external dependencies, sharable as a single file.

iw index build
iw index export --book
open insights-book.html

The output is a fully self-contained HTML file (~1–5 MB). Share it with your team, commit it as a CI artifact, or attach it to every PR.

Quick Start

# Minimal — just needs the index
iw index build
iw index export --book

# Custom output path
iw index export --book -o reports/insights-book.html

# With LLM-generated layer names
iw index export --book --provider openai

The Chapters

The book opens on Executive Summary by default. The sidebar divides chapters into four sections.

Summary

Chapter	Contents
Executive Summary	Living score badge · violation domain pills (structural / behavioral / documentary) · top-3 action items · quick links to all chapters
Recommendations	Top-20 cross-domain issues ranked by severity with domain badges (structural = blue, behavioral = purple, documentary = amber)

Architecture

Chapter	Contents
Layer Architecture	§17 prescriptive SVG embedded in an iframe — layer bands, allowed/forbidden flow arrows, rule overlays
Rules Catalog	Full `rules.yaml` inventory, filterable by domain / severity; Mermaid and Cypher rule indicators
Documentation & Source	Three-panel explorer: docs list, source files, per-file annotation evidence
Architecture	§10.1 D3 interactive chart with Layers / Violations / Communities / Dependencies tabs
Per-ADR chapters	One chapter per ADR rule: Cytoscape.js + dagre flow diagram, CARI import-graph overlay toggles (churn, hub, community), rule panel, per-rule violations

Reports

Chapter	Contents
Violations	Domain-grouped: Structural / Behavioral (with confidence badge and WARN mode indicator) / Documentary + Dormant Rules
Coverage	Per-layer documentation coverage table with low-coverage warning; Layer Sankey SVG — two-column bezier bands (blue = allowed, red = violation, width ∝ import count) when cross-layer flows exist

Analytics

Chapter	Contents
Living Score	4-dimension breakdown: spec grounding · consistency · freshness · architectural conformance
Code Health	Exact clone groups, structural clones, circular imports, boundary violations, unused exports
Hotspots	High-churn / low-doc priority table, deep dependency chains, hub entities, code communities
Documentation	Orphaned sections, per-doc completeness, design rationale inventory, terminology inconsistencies
Priority Files	High-churn low-doc files ranked by urgency score
Tech Debt	TODO / FIXME / HACK / XXX inventory with file, line, and kind
Test Coverage	Symbol-level coverage % and per-directory breakdown
Call Graph	Butterfly trace around any entry-point file; entry file selector, mode selector (calls/trace/reverse), depth slider; supports 20 000+ edge corpora

Domain pills in Executive Summary (e.g., “762 documentary”) navigate directly to the Violations chapter filtered to that domain.
“Go to chapter →” links in the Executive Summary quick-links section.
Sidebar is always visible; active chapter is highlighted.

Per-ADR Flow Diagrams

Each rule in rules.yaml with a domain: behavioral + mermaid: block or with a expresses block gets its own chapter with a Cytoscape.js + dagre flow diagram:

Named components as nodes (layered left-to-right)
Directed flows as edges — green for allowed, red dashed for forbidden
Overlay toggles: actual import edges, violations, hotspot scores, hub degree, community label
Rule metadata: severity, domain, ADR reference, description, violation count

# .iw/rules.yaml — behavioral Mermaid rule
- id: auth-login-sequence
  domain: behavioral
  severity: high
  source:
    type: mermaid_inline
  mermaid: |
    sequenceDiagram
      UI->>AuthService: login(credentials)
      AuthService->>TokenStore: issue(token)
      AuthService-->>UI: token
  forbidden: []

CLI Options

iw index export --book [options]

Flag	Default	Description
`--book`	(required)	Generate the Insights Book
`--rules-config <path>`	`.iw/rules.yaml`	Path to rules.yaml
`-o, --output <path>`	`insights-book.html`	Output file path
`--provider openai`	(off)	LLM-generated layer and directory names
`--db <path>`	(auto)	Path to index.db

Example: CI Artifact

Generate the book as a CI artifact and attach it to every PR:

- name: Generate Insights Book
  run: |
    iw index build
    iw index export --book -o insights-book.html

- name: Upload Insights Book
  uses: actions/upload-artifact@v4
  with:
    name: insights-book
    path: insights-book.html
    retention-days: 30

- name: Check Living Score
  run: |
    iw intent score --format json > score.json
    # Fail CI if grade is below C (score < 60)
    node -e "const s=require('./score.json'); process.exit(s.score < 60 ? 1 : 0)"

Comparison: Book vs. Other Reports

Report	Command	What it shows
Insights Book	`iw index export --book`	15+ chapters: summary, violations, architecture, call graph, living score, code health
Architecture report	`iw index export --html`	Inferred layers, community clusters, actual import graph (§10.1 — also embedded in the book)
Focused view	`iw index export --focus <target>`	N-hop neighbourhood around one file or symbol

The Insights Book is the primary deliverable and the right choice for sharing with stakeholders, architecture reviews, or quarterly health checks.

Next Steps

Prescriptive Architecture Diagram — understand the embedded §17 SVG
Semantic Rule Checking — write rules for behavioral and structural chapters
Health Report — run the living score without the full book
CI Drift Check — gate CI on rule conformance

What Is the Insights Book?

The Insights Book is a multi-chapter, self-contained HTML report that brings together all of CARI’s architecture intelligence in one interactive document. It combines:

The prescriptive architecture diagram (intended layer topology)
Per-ADR interactive flow diagrams
A complete violations table with severity filtering
Per-layer documentation coverage and hotspot files
The Living Documentation Score (spec + consistency + freshness + arch conformance)
Code health: clones, circular imports, boundary violations, unused exports

iw index build
iw index export --book
open insights-book.html

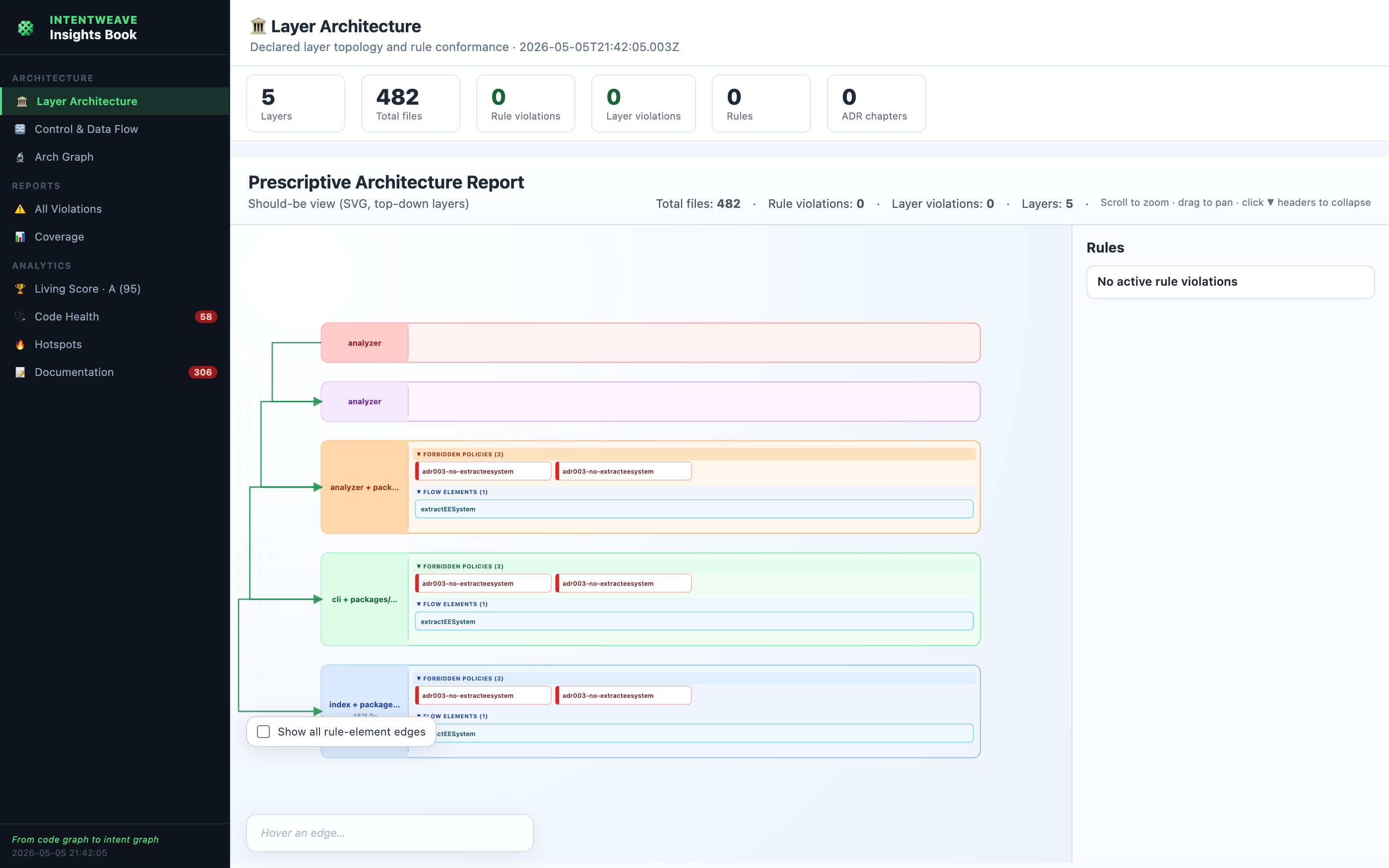

Insights Book — sidebar navigation with Overview, ADR flow chapters, Violations, Coverage, Living Score, and Code Health

The output is a fully self-contained HTML file (~1–3 MB) with no external dependencies. Share it with your team or commit it as a generated artifact in CI.

Quick Start

# Minimal — just needs the index
iw index build
iw index export --book

# With living score and code health included
iw index export --book --with-score --with-health

# Custom output path
iw index export --book -o reports/architecture-book.html

The Chapters

The sidebar divides the book into four sections. Each section is a group of chapters navigated by clicking sidebar items.

Overview

The Overview chapter shows a stat dashboard and embeds the full prescriptive architecture diagram as an interactive panel — the same SVG you get from iw index export --prescriptive, but embedded inline.

Stats shown:

Total files and symbols indexed
Rule violations (with red/green indicator)
Layer violations
Number of ADR chapters

Control & Data Flow

One chapter per ADR rule that contains an expresses block. Each chapter shows an interactive Cytoscape.js diagram with:

Named components (expresses.elements) as nodes
Directed flows (expresses.flows) as edges — green for allowed, red dashed for forbidden
Toggle overlays: actual import edges, violations, hotspot scores, hub degree
Rule metadata: severity, ADR reference, description, violation count

Use the overlay toggles to compare declared intent against observed behaviour:

[x] Actual imports    — do real imports follow the declared flows?
[x] Violations        — which files breach this rule?
[ ] Hotspot score     — which components are high-churn?
[ ] Hub degree        — which components are architecturally central?

All Violations

A severity-sorted table of every rule and layer violation in the codebase. Filter by severity, sort by rule or file, and click any row to jump to the per-ADR flow chapter for that rule.

Columns: rule ID · ADR · severity · file · line · detail · autofix hint

Coverage

Per-layer documentation coverage derived from the annotation engine:

What percentage of exported symbols in each layer are mentioned in docs?
Which are the highest-urgency hotspot files (high churn, low coverage)?

The hotspot table is sorted by urgency score and shows churn count, coverage %, and the layer the file belongs to.

Living Score (optional)

When built with --with-score, a dedicated chapter shows the composite Living Documentation Score — a 0–100 / A–F grade built from four dimensions:

Dimension	Weight	What It Measures
Spec coverage	35%	How many exported symbols are mentioned in documentation
Consistency	25%	Whether the same symbol is named consistently across all docs
Freshness	20%	Whether recently changed files still have current documentation
Arch conformance	20%	Whether imports follow the declared layer and rule constraints

Code Health (optional)

When built with --with-health, a chapter showing:

Exact clones — files with identical function body hashes
Structural clones — type-2 clones (same control flow, different identifiers)
Circular imports — import cycles and their length
Boundary violations — cross-package internal imports
Unused exports — exported symbols that are never imported

CLI Options

iw index export --book [options]

Flag	Default	Description
`--book`	(required)	Generate the Insights Book
`--with-score`	(off)	Include the Living Documentation Score chapter
`--with-health`	(off)	Include the Code Health chapter
`--show-rule-elements`	(off)	Render `expresses.elements` chips in the embedded prescriptive diagram
`--rules-config <path>`	`.iw/rules.yaml`	Path to rules.yaml
`-o, --output <path>`	`insights-book.html`	Output file path
`--db <path>`	(auto)	Path to index.db

Using with Prescriptive Rules

The Insights Book uses the same rules.yaml and layers.yaml as the prescriptive diagram. The per-ADR chapters are generated from rules that have an expresses block:

rules:
  - id: adr003-pipeline-flow
    description: "Intended ADR-003 pipeline: Providers → Adapters → Workers"
    adr: ADR-003
    severity: low
    expresses:
      elements:
        - name: SourceProvider
          kind: component
          layer: "packages/providers"
        - name: AdapterParser
          kind: component
          layer: "packages/adapters"
        - name: PipelineWorker
          kind: component
          layer: "packages/pipeline"
      flows:
        - from: SourceProvider
          to: AdapterParser
          policy: allowed
          kind: data
        - from: AdapterParser
          to: PipelineWorker
          policy: allowed
          kind: control
    forbidden: []

A rule without expresses still appears in the All Violations chapter (if it has violations) but does not get its own per-ADR flow chapter.

Example: CI Artifact

Generate the book as a CI artifact and attach it to every PR:

- name: Generate Insights Book
  run: |
    iw index build
    iw index export --book \
      --with-score \
      --with-health \
      -o architecture-book.html

- name: Upload Insights Book
  uses: actions/upload-artifact@v4
  with:
    name: architecture-book
    path: architecture-book.html
    retention-days: 30

- name: Check Living Score
  run: |
    iw intent score --format json > score.json
    # Fail CI if grade is below C (score < 60)
    node -e "const s=require('./score.json'); process.exit(s.score < 60 ? 1 : 0)"

Comparison: Book vs. Other Reports

Report	Command	What it shows
Full architecture	`iw index export --html`	Inferred layers, community clusters, actual import graph
Focused view	`iw index export --focus <target>`	N-hop neighbourhood around one file or symbol
Prescriptive diagram	`iw index export --prescriptive`	Declared intent — allowed/forbidden flows
Insights Book	`iw index export --book`	All of the above, plus violations, coverage, living score, and code health in one file

The Insights Book is the most comprehensive output and the right choice for sharing with stakeholders, architecture reviews, or quarterly health checks.

Next Steps

Prescriptive Architecture Diagram — understand the embedded SVG
Semantic Rule Checking — write rules that generate per-ADR flow chapters
Health Report — run the living score without the full book
CI Drift Check — gate CI on rule conformance
